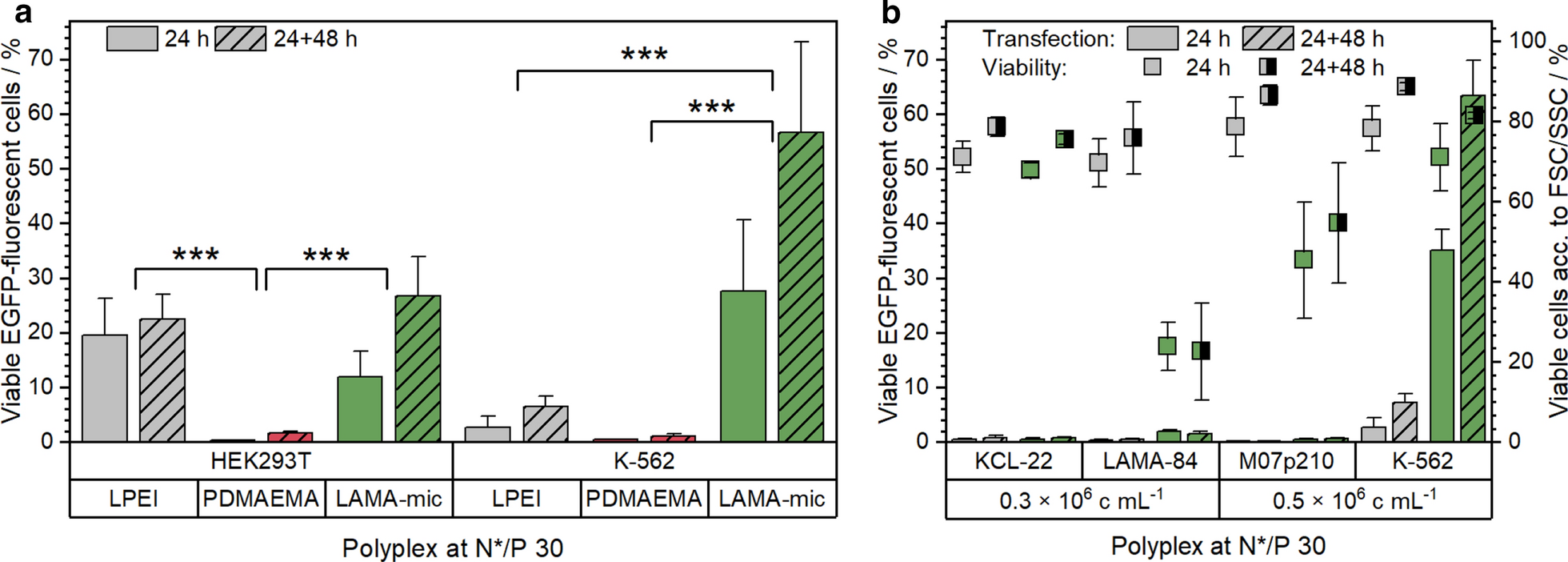

Fig. 4

Transfection efficiency of polymers in different cell lines. a EGFP expression of viable cells was analyzed via flow cytometry following incubation of cells with polyplexes of mEGFP-N1 pDNA and polymers at N*/P 30 in respective growth medium (D10 or R10 with 10 mM HEPES) for 24 h or for 24 h followed by splitting of cells and medium and further incubation for 48 h. Values represent mean ± SD (n ≥ 3). Regarding significant differences, only the main effects of the treatment were determined since there was no significant interaction of incubation time and treatment. b EGFP expression of viable cells in AML or CML cell lines treated as described above and seeded as indicated below the graph. Viability was determined according to the FSC/SSC scatter plot of flow cytometry. Values represent mean ± SD (n ≥ 3)
